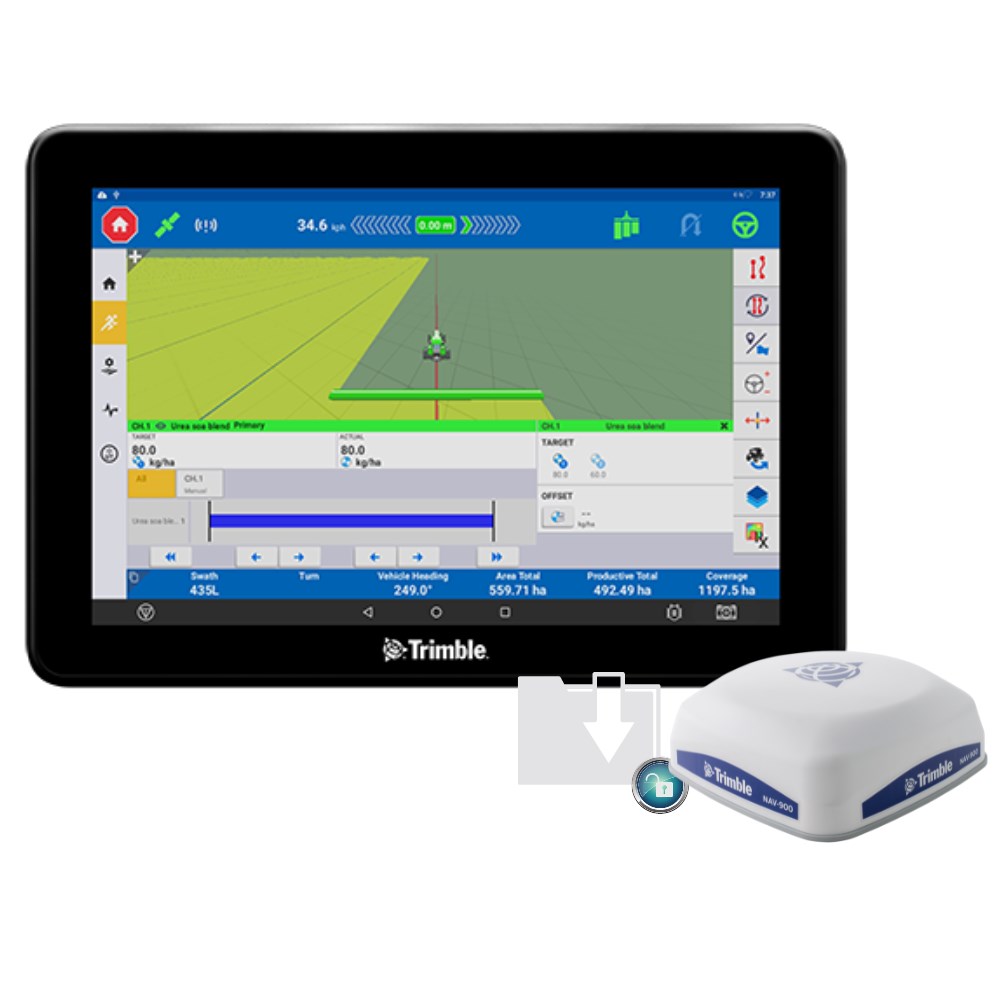

Trimble display & NAV Receiver ($5564 Value) from Canada West Harvest Centre
Trimble display & NAV Receiver ($5564 Value) from Canada West Harvest Centre
Item must be picked up from the office of WestCentralOnline
Current Price
$2,226.00
(
)
Starts In remaining
Description
Gfx 1260
The GFX-1260™ display is Trimble Agriculture's newest flagship 12-inch (30.5 cm) Android-based display for controlling and executing all in-field work through the Precision-IQ™ field application interface. With faster processing, greater memory and more storage capacity, this robust display is an ideal choice for any farm and makes managing even the most complex field operations easy.
Notes:
A Software Activation license is required when it is time to activate the display for use.
Your GFX-1260 display is delivered activated to run immediately out of the box. Cables and RAM Mount included.
Note: App Central and basic functions such as Wi-Fi and browser do not require the Software activation to work.
Once the software is activated, the Precision-IQ App will function and additional feature licenses can also be purchased and applied to the GFX-1260 as well as the NAV Controller
The GFX-1260 display can be paired either with the NAV-500™ or with the NAV-900 guidance controllers.
Features of the GFX-1260 Display
12-inch High quality touch screen (30.48cm)
Ultra Powerful Quad-Core iMx8 PLUS
Android OS
Compatible with Precision-IQ™
Wi-Fi and Bluetooth compatible
Trimble Ag software compatible (including wireless transfer)
Compact design economic on cab space
RAM Mounting System
Easy install
Upgradable with a range of licenses available for additional features including:
ISOBUS Universal Terminal
ISOBUS Task Controller
ISOBUS Multi-Product Control
Implement: Field IQ™ system
Prescriptions
Serial Rate and TUVR
VRS correction Client
Auto Asset Detection
Advanced Guidance Lines
Technical Specifications:
Resolution
1280 x 800
Size
12" color (30.48 cm) display - Projected Capacitive (optically bonded)
Brightness
Brightness 900 (candela/m2)
System Processor
Quad-Core iMx8 PLUS
1x Cortex A72@1.6GHz
4x Cortex A53@1.2GHz
4 GB
Storage (eMMC/RAM)
32 GB
Operating System
Android 9.0
Internal GNSS
No - Requires NAV-500 or 900 Controller Receiver
Mechanical
Dimensions
Cast aluminum with stainless steel fixing screws - L 313.5 mm x W 215.6 mm x D 49.5 mm (at connector belt)
Weight
2.50 kgs (5.5 lbs)
Mount
RAM 1.5" Diamond 2 bolt
Environmental
Rating
IP66
Operational Temp
-40 °C to 85 °C (-40 °F to 185 °F)
Connections
Power/CAN
Deutsch DT15-6p
USB (2 x side facing)
USB 2.0 Type A (1 Host, 1 OTG)
Wi-Fi
Integrated 802.11b/g/n/ac (2.4 & 5 GHz*)
*May vary depending on country compliance
Bluetooth
Bluetooth 5
GNSS I
Ethernet (BroadR-Reach) for NAV-500 NAV-900
GNSS II
Ethernet (BroadR-Reach) for NAV-500 NAV-900
Expansion Port (I)
(RS-232, 2 I/O) - M12 B-code - Female 5 pin (blue insert) - (Imp Lift, Radar Out, or Video In (PAL/NTSC)
Expansion Port (II)
(RS-232, 2 I/O CAN) - M16 Female 8 Pin (Red insert) - (Imp Lift, Radar Out, or Video In (PAL/NTSC) CANx200
Nav 900
The Trimble Nav-900™ guidance controller is our most advanced GNSS receiver to date, built for maximum uptime and a wide range of accuracy options from basic to high precision. It is designed to mount on the roof of most agricultural vehicles to provide positioning and guidance, including autosteer.
NAV-900™ FEATURES
Compact integrated all in one high accuracy receiver and steering controller.
Inbuilt high accuracy IMU (Terrain Compensation)
Trimble™ Maxwell 7 GNSS Technology
Multiple mounting options including Factory mount integration and quick release for ease of transfer between vehicles
Compatibility with five (5) satellite constellations: GPS, GLONASS, BeiDou, QZSS, and Galileo
Constellations tracked:
GPS....................................L1 C/A, L2C, L2E, L5
GLONASS..........................L1 C/A, L1P, L2 C/A, L2P, L3 CDMA
SBAS..................................L1 C/A, L5
Galileo ................................E1, E5A, E5B
BeiDou (COMPASS)...........B1, B2
Correction Satellites..........................CenterPoint® RTX, WAAS, EGNOS, MSAS
The NAV-900™ guidance controller is easily upgraded with a r
Details
- Retail Value 5,564.69
Lot # WC005
System ID # 25282617
